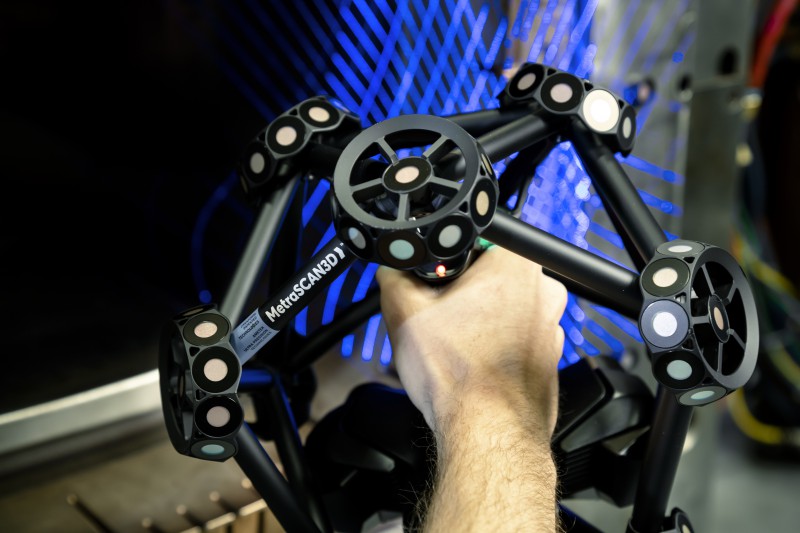

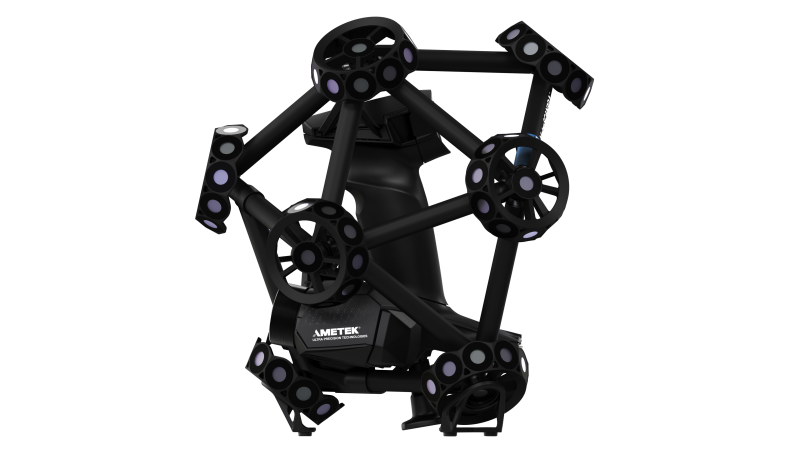

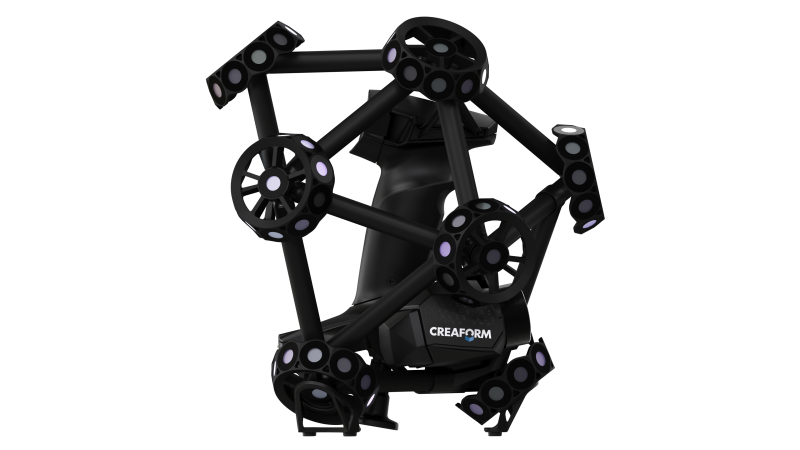

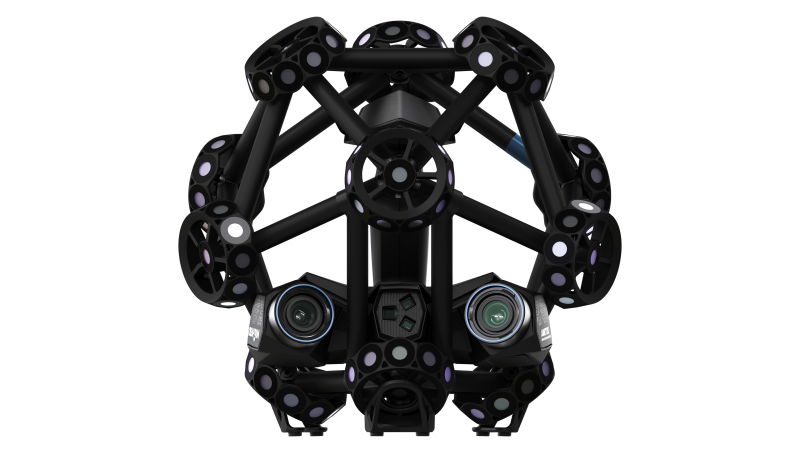

Creaform MetraSCAN 3D Black+ | Elite

The MetraSCAN 3D optical CMM scanner line-up is specifically designed for manufacturing and metrology professionals who do not want to compromise on quality or efficiency. It can withstand any production environment, including shop floor vibrations, part movements and environmental instability—all while accelerating 3D measurement workflows. This optical CMM scanner has been engineered to perform highly accurate and repeatable metrology-grade measurements and 3D geometrical surface inspections.

When paired with the HandyPROBE, Creaform’s handheld optical coordinate measuring machine (PCMM) with probing capabilities, users can also harness the power of both 3D scanning and probing for complete, end-to-end inspection processes.

Faster 3D Scanning

      High measurement rate
    • 1,800,000 measurements/second
      Large scanning area for all types of parts
    • 30 blue laser lines
      Ultra-quick setup
    • No warm-up time; users can be up-and-running in less than 5 minutes
      360° Magnetic Targets
    • For quick and easy setups
      Optimized visibility for dynamic tracking

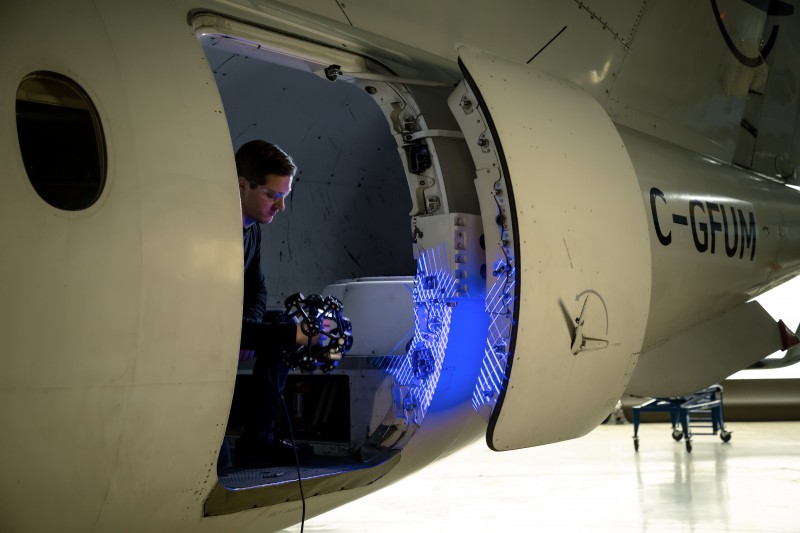

Enhanced Accuracy on Large Parts

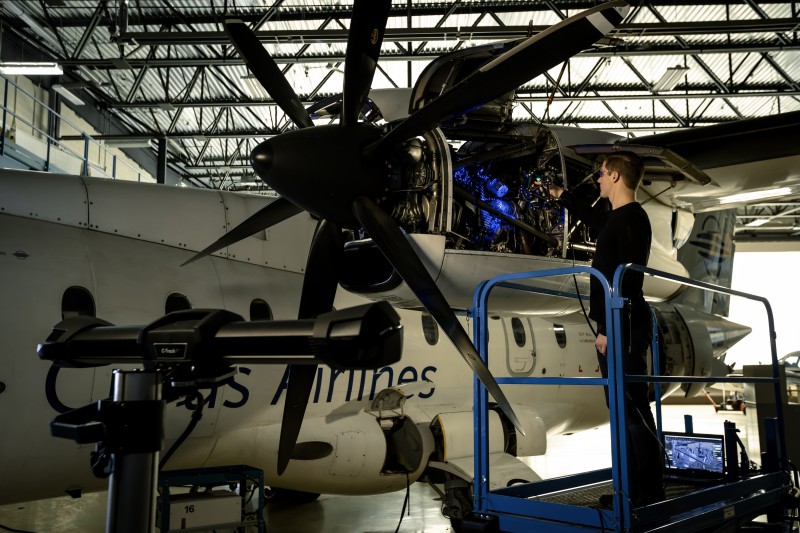

The AVE feature allows for automatic acquisition volume extension only by moving the C-Track, without requiring extra measurements. With its advanced integrated photogrammetry and scaling algorithms, the MetraSCAN 3D ensures more accurate, repeatable, and human-error-free measurements on large parts.
      Accuracy
    • 1,800,000 measurements/second
    • 0.025 mm (0.0009 in)
      Automatic Volume Extension
    • 0.025mm + 0.015mm/m (0.0009in + 0.00018in/ft)
      Reliable acceptance tests
    • Based on VDI/VDE 2634 Part 3 standard
    • Based on ISO 10360 standard
    • ISO/IEC 17025: 2017 accredited laboratory

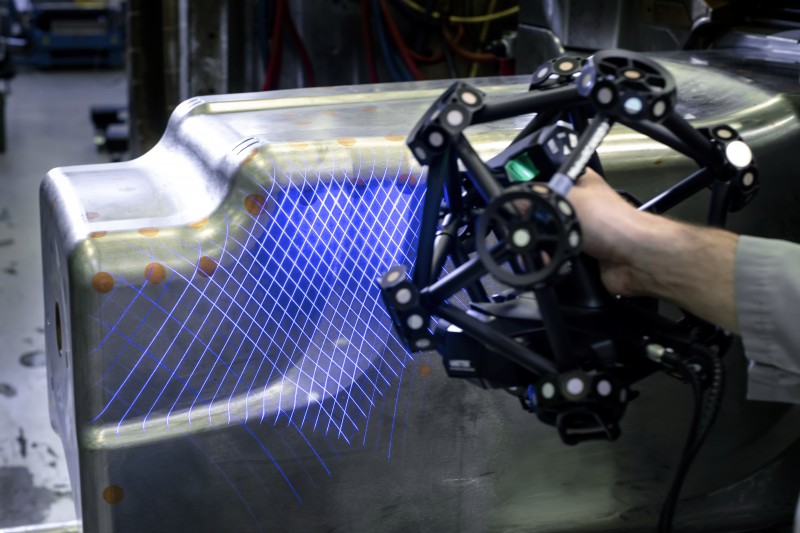

      Shop floor accuracy with dynamic referencing
    • Measurement accuracy insensitive to environmental instabilities
    • High resolution
    • Measures all types of complex and highly detailed parts

Unmatched Versatility

Highly versatile, the MetraSCAN 3D can be used to scan various part sizes and surface finishes in real time—all with the same device. With its extendable measurement volume, parts of any shape, complexity, and geometry can be measured easily without loss in accuracy or requiring leapfrog.

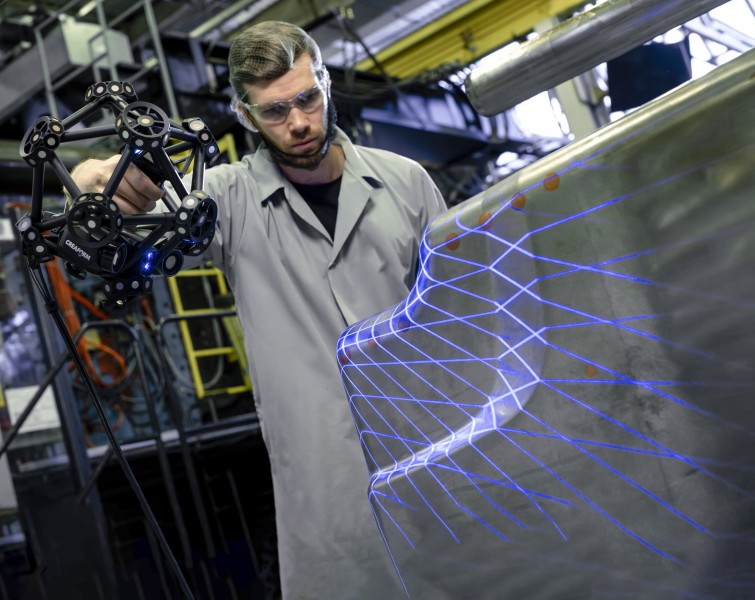

      Blue laser technology

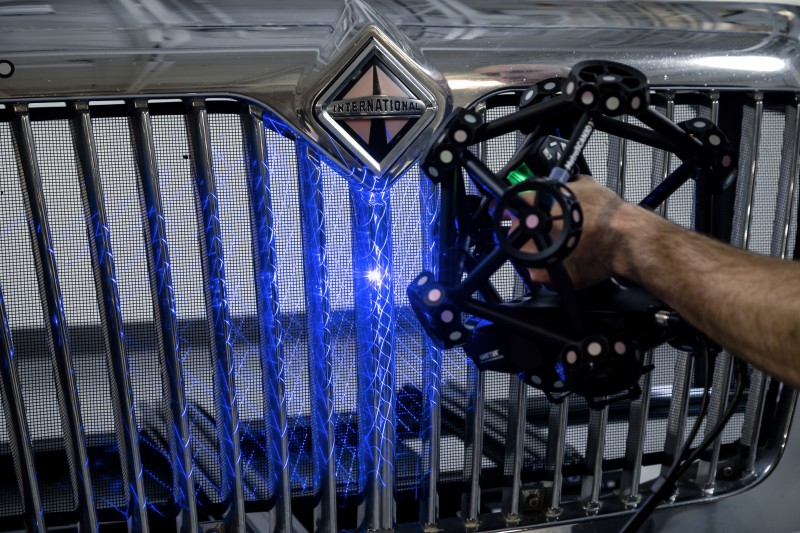

    • Ideal for shiny and reflective surfaces
        • Large and easily extendable measurement volume
      • Wider than other portable CMMs
      • No leapfrog required
      • Integrated photogrammetry
        Optional HandyPROBE
      • Combination of both 3D scanning and probing
      • No targets required
        New Setup Assistance Tools
      • Guidance volume display
      • High-level setup diagnostics
